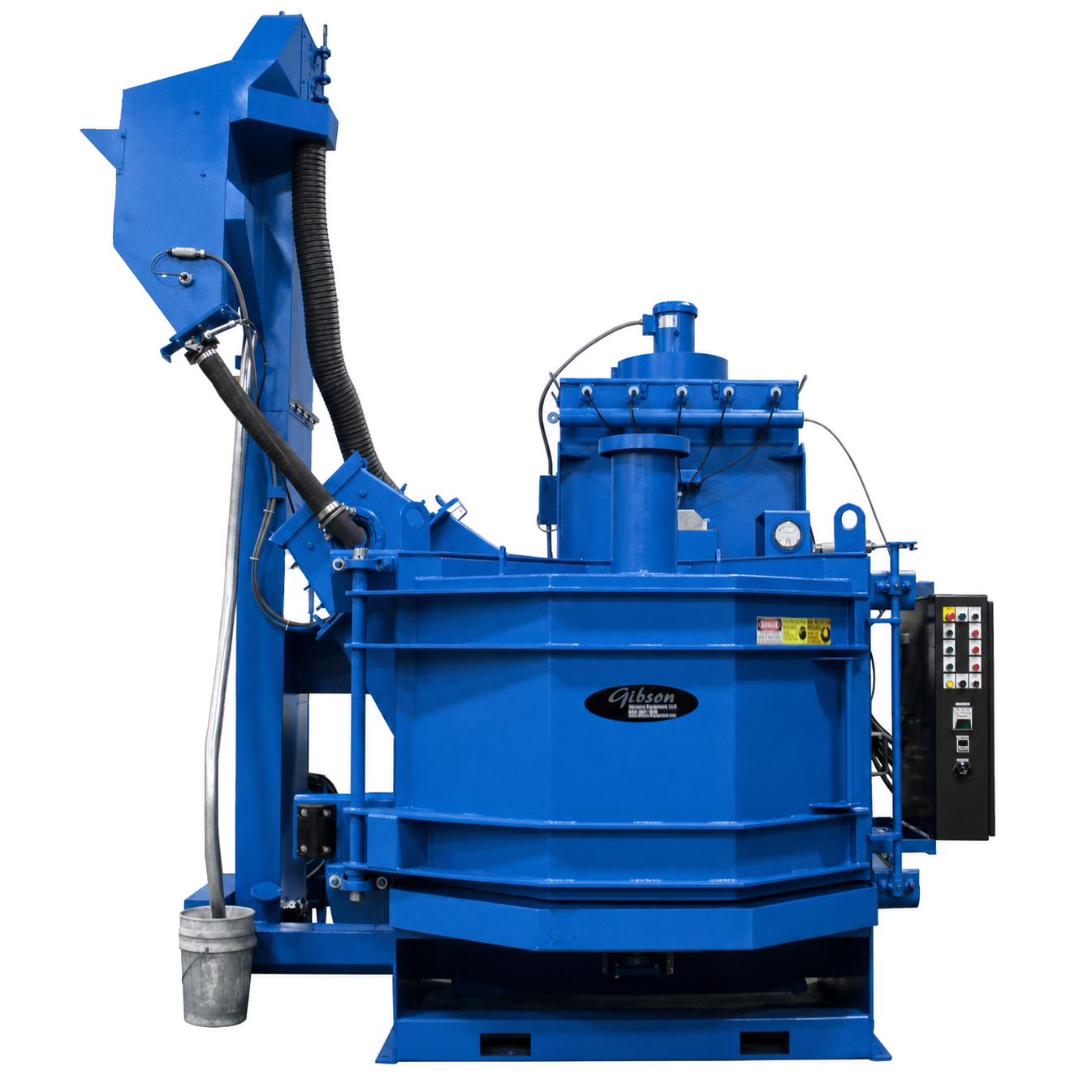

60″ XT Table Blast System
Features:
- These abrasive wheelblast machines use a powered turntable that rotates within the blast envelope to provide 360° exposure.

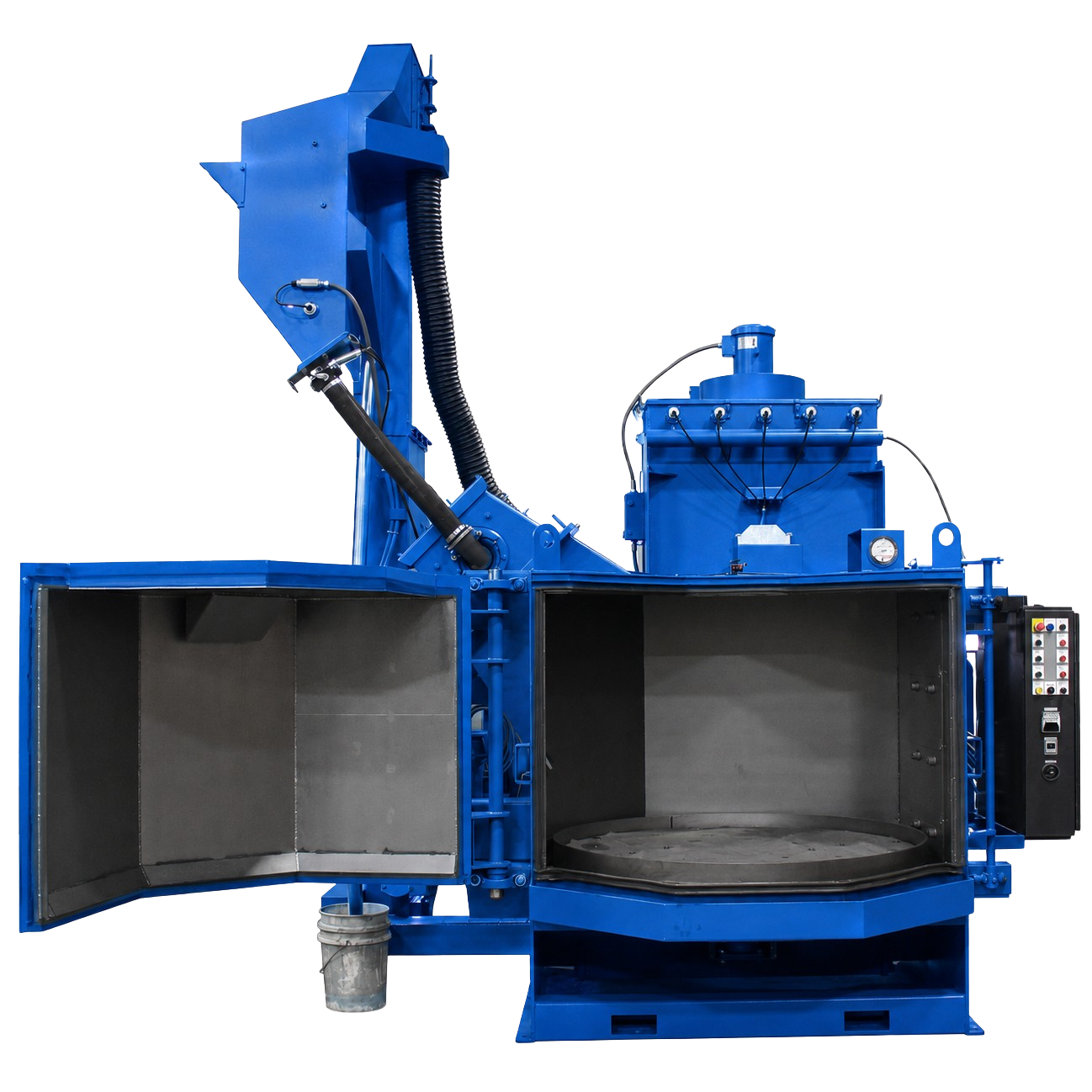

- The turntable can be swung in and out of the blast enclosure for easy loading and unloading.
- Turntables have abrasion-resistant liners.
- Some models feature an oscillating blast wheel to enhance blast coverage.
- Designed for overhead loading and unloading of heavy parts using a hoist or crane.
Benefits:
- Versatility and flexibility
- Suitable for parts ranging from 10 lb gears to heavy fabrications.
- Facilitate cleaning, peening, deburring, profiling, finishing, and other surface conditioning tasks.
- Provide efficient blasting of parts with consistent 360-degree coverage.
Product Details
| Work Load Capacity | 5,000 lb |
|---|---|
| Maximum Blast Envelope Capacity | 60 in Dia. x 60 in |
| Media Charge Capacity | 3000 lb |
| Direct-Drive Blast Wheel (HP) | (2) 7.5 hp |
| Ventilation Requirement | 2,000 CFM |
| Available Options | Variable speed motors |
| Blast Cleaning Solutions for: | Ferrous and non-ferrous castings |
| Air Wash Separator | 20 |
| Blast Wheel Upgrade Options | Two-10 HP |
| Direct-Drive Blast Wheel - Optional Wheels (HP) | (2) 10 |
| Dust Collector CFM Required | 2,000 |
| Dust Collector Depth (in) | 36 |
| Dust Collector Height (in) | 127 |
| Dust Collector Width (in) | 50 |
| Electrical Requirement - Current (Table Blaster Only) | 21.7 |
| Electrical Requirement - Current (with Dust Collector) | 27.9 |
| Electrical Requirement - Frequency (Hz) | 60 |
| Electrical Requirement - Phase | 3 |
| Electrical Requirement - Voltage (V) | 460 |
| Initial Abrasive Fill (lb) | 2,000 |
| Low Abrasive Indicator | Standard |
| Noise level (dB) | 85 |
| Oscillating Blast Wheels | Standard |
| Pitless Design | Yes |
| Rotary Screen | Optional |
| Standard Machine Depth (in) | 94 |
| Standard Machine Height (in) | 180 |
| Standard Machine Weight (in) | 8,700 |
| Standard Machine Width (in) | 124 |
| Standard Table Liner | Manganese |
| Standard Table Load Capacity (lb) | 5,000 |
| Table Blaster Depth, Cabinet Only (in) | 94 |
| Table Blaster Height, Cabinet Only (in) | 168 |
| Table Blaster Width, Cabinet Only (in) | 125 |
| Ventilation Requirement (CFM) | 2,000 |
| Workload Dimensions Width x Diameter (in) | 60 x 52 |
