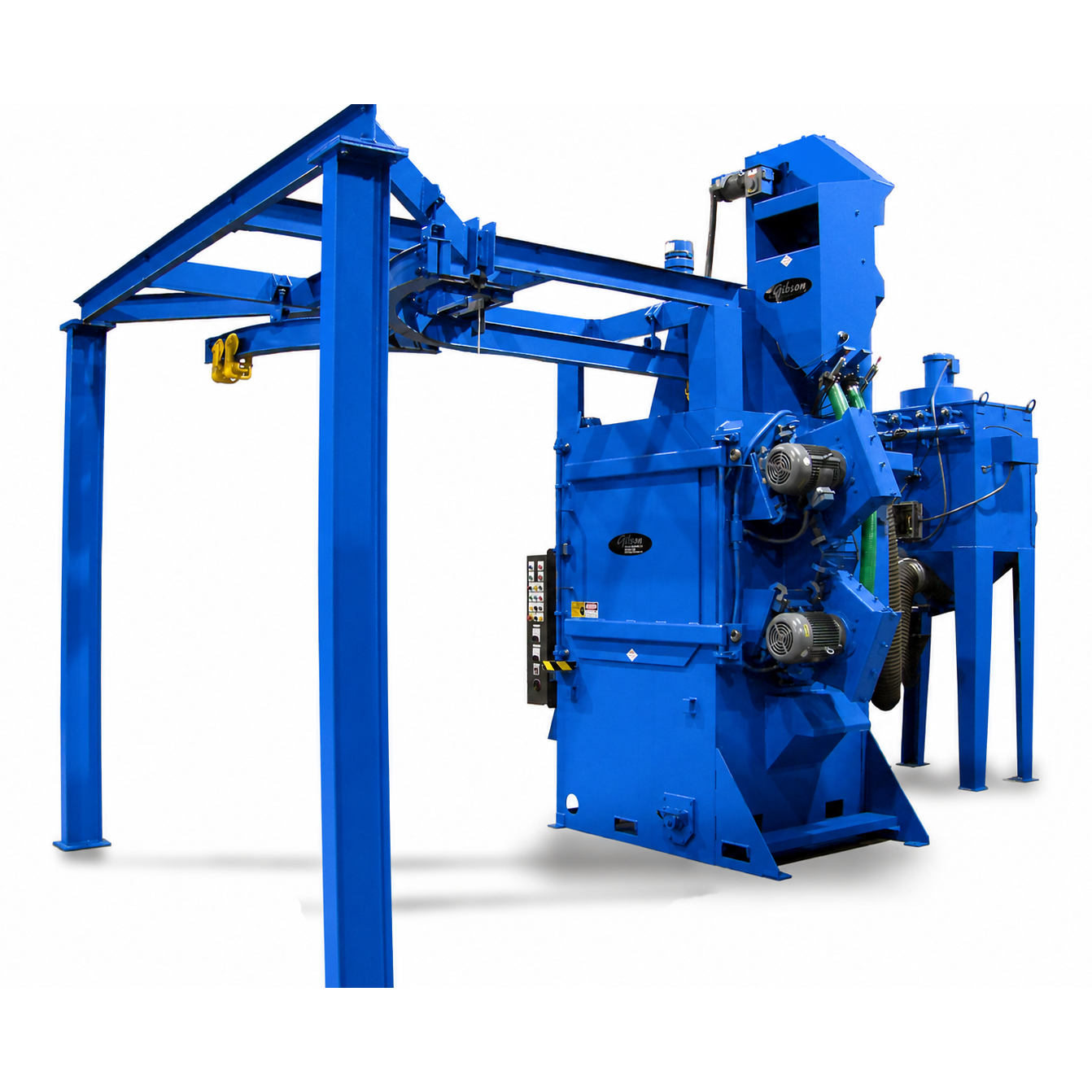

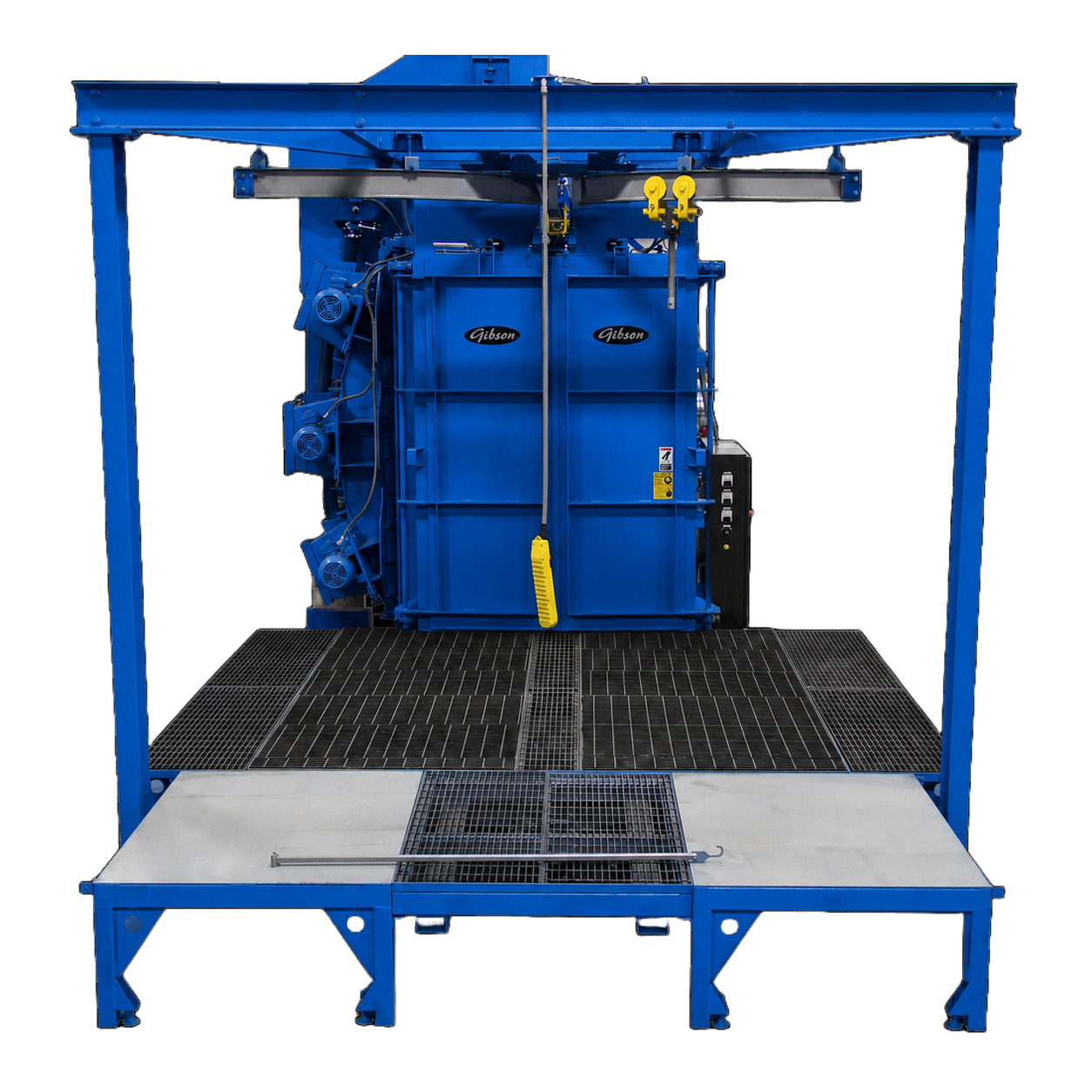

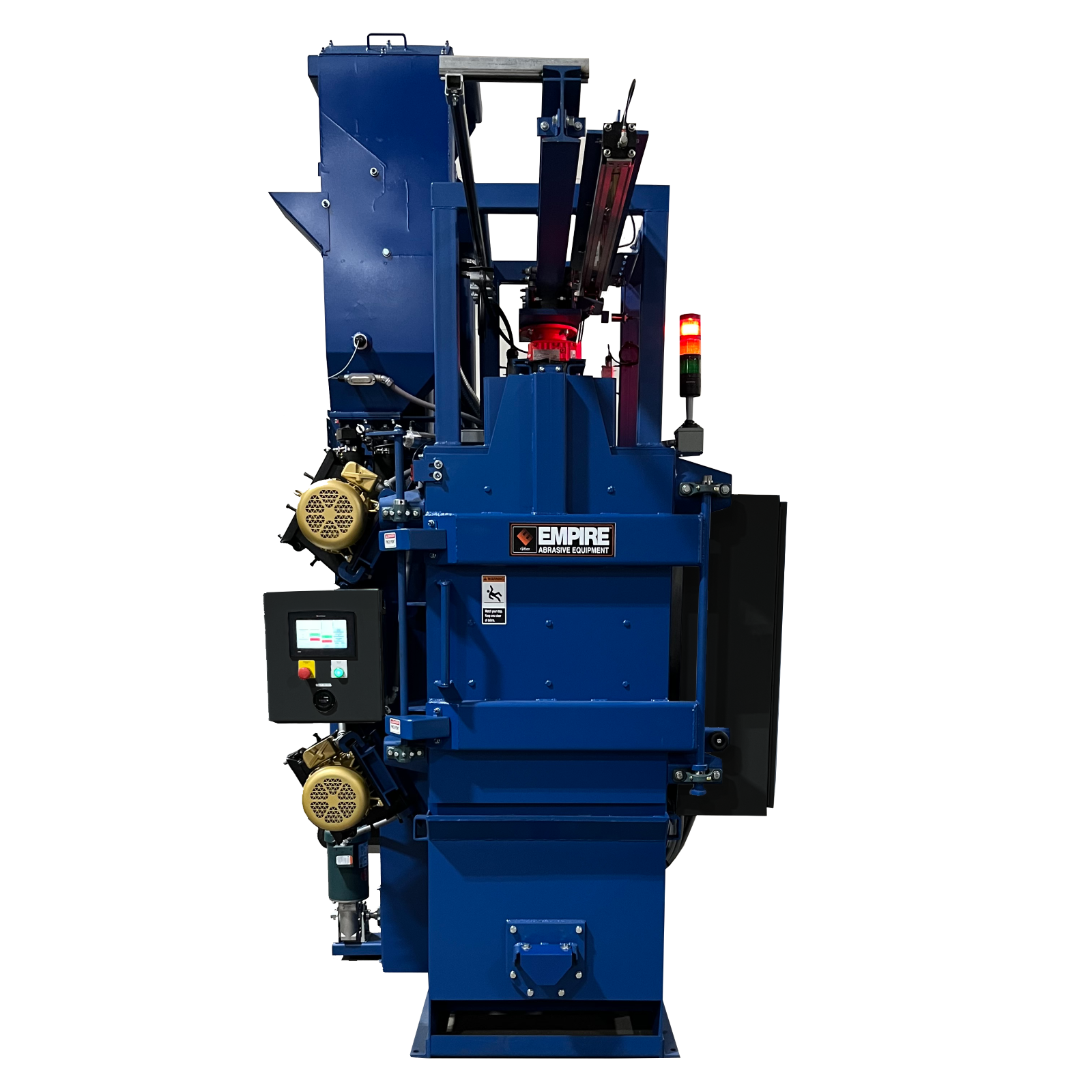

24×30 Hanger Blast System
Features:
- These systems are designed for batch blasting of parts.
Benefits:
- Ideal for parts that are too fragile or awkward for other automated finishing methods.
Product Details
| Work Load Capacity | 500 lb |
|---|---|
| Maximum Blast Envelope Capacity | 24 in Dia x 30 in |
| Optimal Blast Envelope Capacity | 24 in Dia x 20 in |
| Media Charge Capacity | 500 lb |
| Direct-Drive Blast Wheel (HP) | (2) 5 hp |
| Ventilation Requirement | 800 CFM |
| Available Options | Variable speed motors |
| Dust Collector CFM Required | 800 |
| Initial Abrasive Fill (lb) | 500 |
| Low Abrasive Indicator | Upgrade |
| Noise level (dB) | 65 |
| Pitless Design | Yes |
| Single Air Wash Separator (in) | 10 |
| Standard Hanger Capacity (lb) | 500 |
| Standard Machine Depth (in) | 93 |
| Standard Machine Height (in) | 138 |
| Standard Machine Weight (in) | 4,284 |
| Standard Machine Width (in) | 65 |
| Features | Solid construction |
