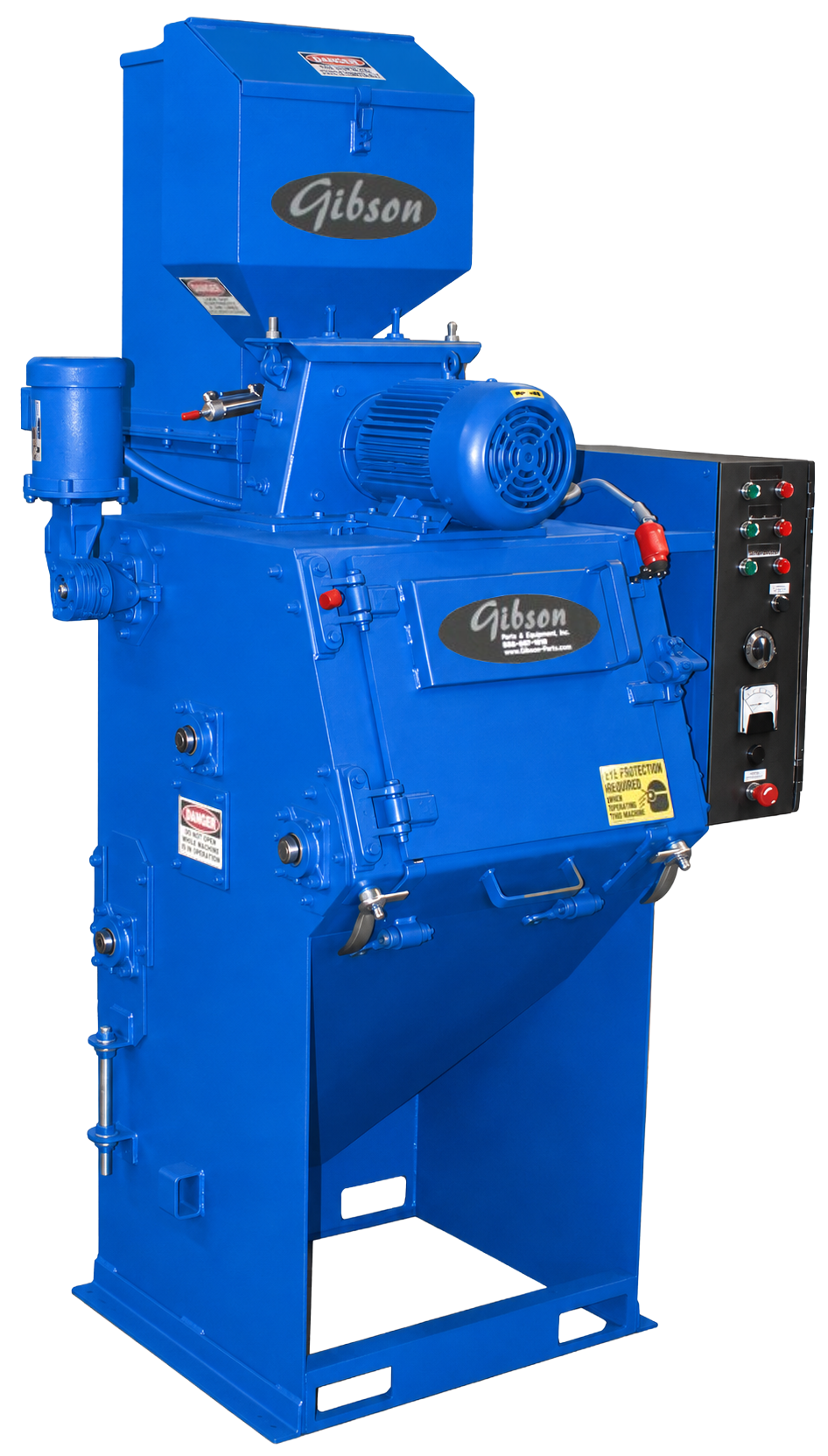

1.5BB Tumble Blasters
Features:
- Process multiple parts by tumbling them within the blast envelope.
- Include a perforated belt for loading parts, abrasive-resistant barrel heads, cabinet lines, and door liners.
- Load capacities up to 3,000 pounds or 24 cubic feet.
Benefits:
- Designed for automating surface preparation economically.
- Simple to operate.
- Provide consistent results automatically, whether working intermittently or non-stop.
- Facilitate cleaning, peening, deburring, profiling, and finishing.
Applications: Ferrous and non-ferrous castings | Heat treated parts | Automotive parts | Die Castings | Deflashing plastic | Deburring | Descaling | Peening
Product Details
| Work Load Capacity | 1.5 ft³ |
|---|---|
| Optimal Blast Envelope Capacity | 18 x 20 in |
| Standard Mill Belt Hole Size | 5/16 in |
| Media Charge Capacity | 400 lb (Steel) |
| Direct-Drive Blast Wheel (HP) | 5 hp |
| Ventilation Requirement | 500 CFM |
| Available Options | Rotary Screen |
| AR400 Cabinet Liners | Standard |
| Drop Down Door | Optional |
| Dust Collector CFM Required | 400 |
| Dust Collector Depth (in) | 26 |
| Dust Collector Height (in) | 83 |
| Dust Collector Width (in) | 40 |
| Electrical Requirement - Current (Tumble Blaster Only) | 8 |
| Electrical Requirement - Current (with Dust Collector) | 8.8 |
| Electrical Requirement - Frequency (Hz) | 60 |
| Electrical Requirement - Phase | 3 |
| Electrical Requirement - Voltage (V) | 460 |
| Initial Abrasive Fill (lb) | 150 |
| Low Abrasive Indicator | Optional |
| Noise level (dB) | 60 |
| Pitless Design | Yes |
| Pneumatic Vertical Door | Optional |
| Quantity Increment | 1 |
| Reversing Mill Belt | Standard |
| Rotary Scalping Screen | Option |
| Rotary Screen | Optional |
| Single Air Wash Separator (in) | 9 |
| Standard Door Liner | AR Rubber |
| Standard Machine Depth (in) | 47 |
| Standard Machine Height (in) | 87 |
| Standard Machine Weight (in) | 1,460 |
| Standard Machine Width (in) | 50 |
| Tumble Blaster Depth, Cabinet Only (in) | 47 |
| Tumble Blaster Height, Cabinet Only (in) | 87 |
| Tumble Blaster Width, Cabinet Only (in) | 50 |
| Ventilation Requirement (CFM) | 500 |
| Workload Dimensions Width x Diameter (in) | 18 x 20 |
