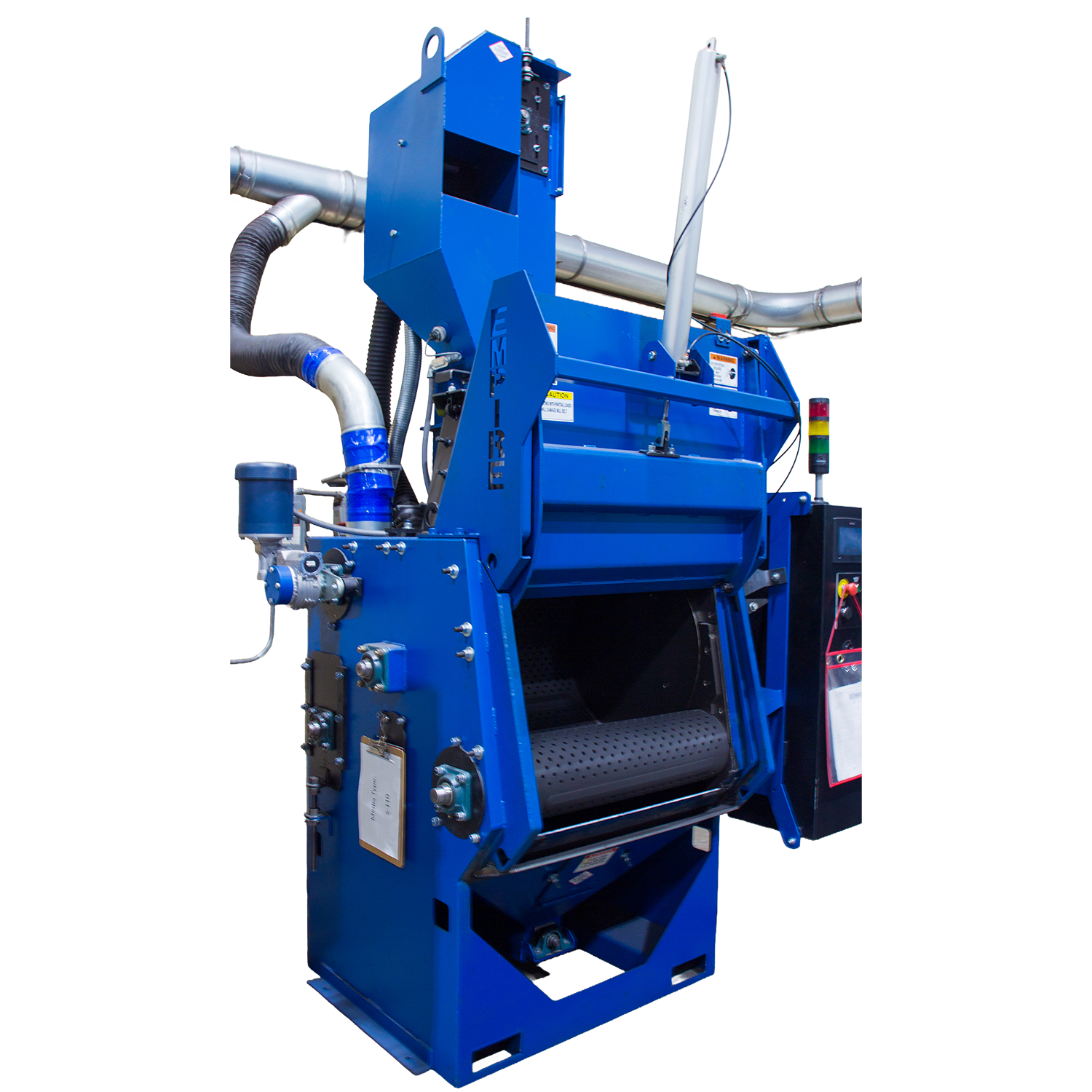

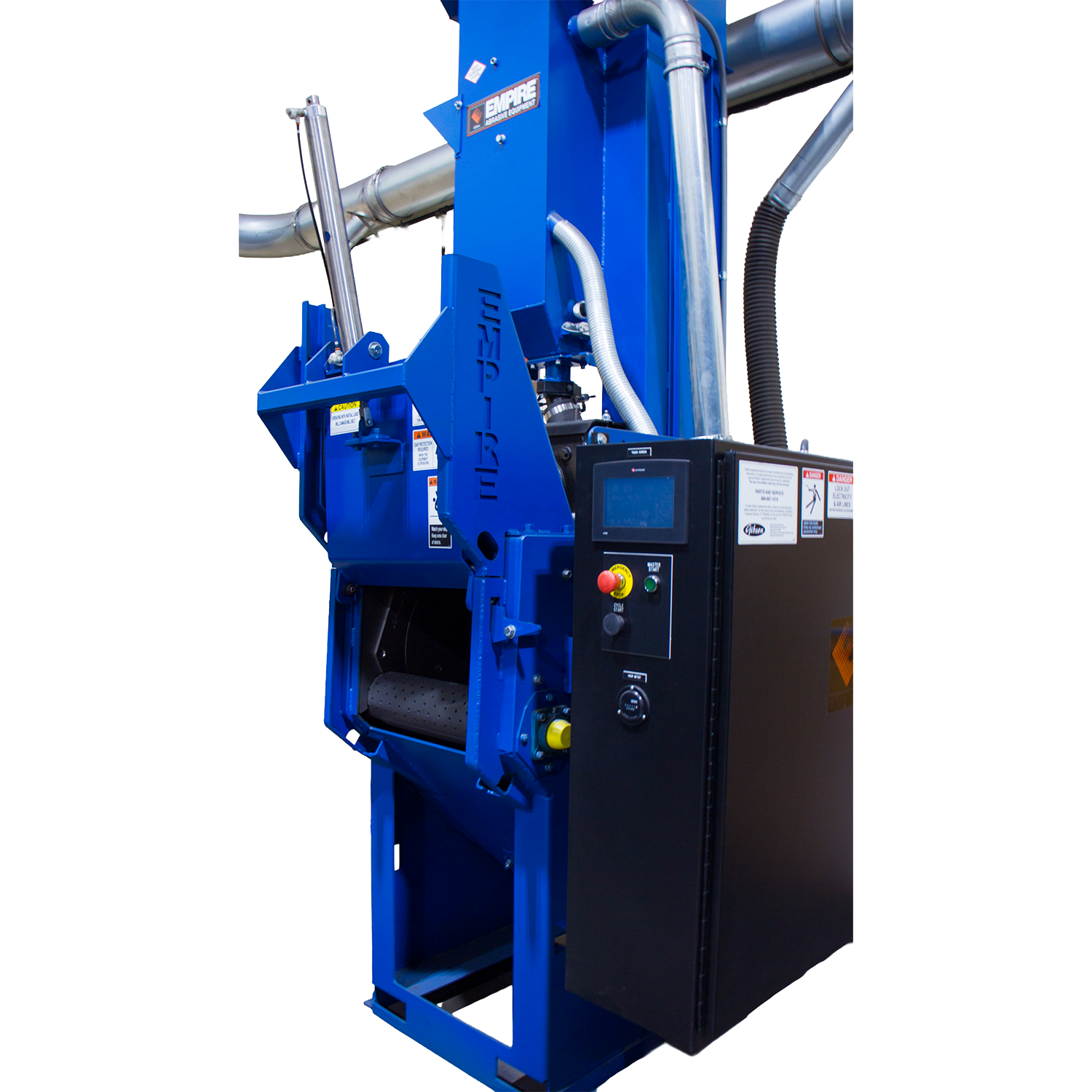

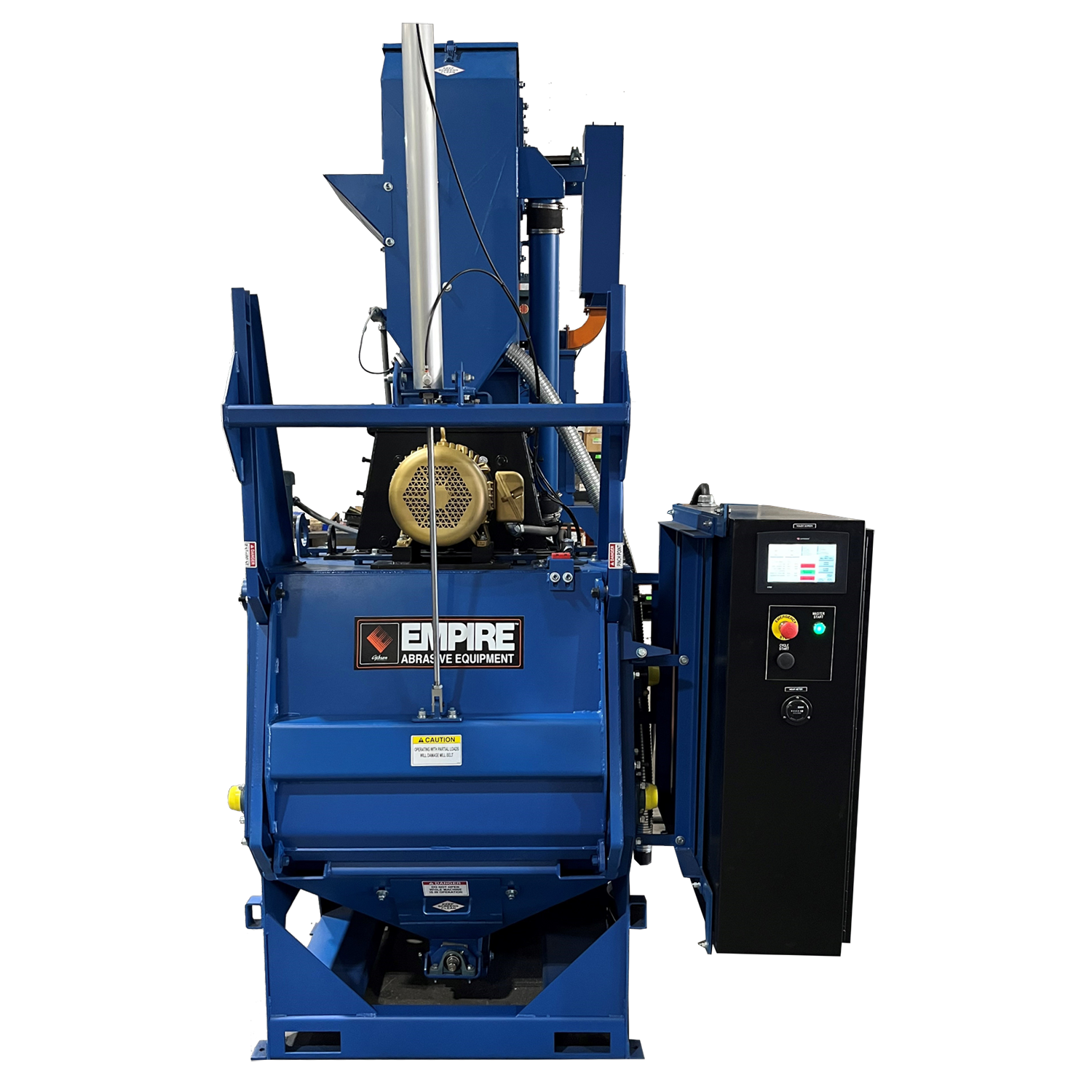

1.5AB Air Blast Tumblers
Features:
- Process multiple parts by tumbling them within the blast envelope.
- Include a perforated belt for loading parts, abrasive-resistant barrel heads, cabinet lines, and door liners.
- Load capacities up to 3,000 pounds or 24 cubic feet.
Benefits:
- Designed for automating surface preparation economically.
- Simple to operate.
- Provide consistent results automatically, whether working intermittently or non-stop.
- Facilitate cleaning, peening, deburring, profiling, and finishing.
Product Details
| Work Load Capacity | 1.5 ft³ |
|---|---|
| Optimal Blast Envelope Capacity | – |
| Standard Mill Belt Hole Size | 3/16 in |
| Media Charge Capacity | 150 lb (Alox) |
| Direct-Drive Blast Wheel (HP) | – |
| Ventilation Requirement | 800 CFM |
| Standard Features | Tunable media reclaimer |
| Available Options | Mill belt hole sizes and cleats |
| AR400 Cabinet Liners | Standard |
| CFM Air Requirement @ 90 psi | 112 |
| Compressed Air Requirement at 80 psi | 74 |
| Cyclone Separator | Standard |
| Dust Collector CFM Required | 800 |
| Dust Collector Depth (in) | 26 |
| Dust Collector Height (in) | 83 |
| Dust Collector Width (in) | 40 |
| Electrical Requirement - Current (Tumble Blaster Only) | 1 |
| Electrical Requirement - Current (with Dust Collector) | 3.8 |
| Electrical Requirement - Frequency (Hz) | 60 |
| Electrical Requirement - Phase | 3 |
| Electrical Requirement - Voltage (V) | 460 |
| Initial Abrasive Fill (lb) | 50 |
| Media Charge Capacity (Alox) (in) | 150 |
| Noise level (dB) | 60 |
| Number of Oscillating Nozzles | 2 |
| Oscillating Blast Guns | 2 |
| Pneumatic Vertical Door | Optional |
| Reversing Mill Belt | Standard |
| Standard Door Liner | AR Rubber |
| Standard Machine Depth (in) | 56 |
| Standard Machine Height (in) | 76 |
| Standard Machine Weight (in) | 1,350 |
| Standard Machine Width (in) | 50 |
| Standard Work Load Capacity (lb) | 200 |
| Tumble Blaster Depth, Cabinet Only (in) | 60 |
| Tumble Blaster Height, Cabinet Only (in) | 97 |
| Tumble Blaster Width, Cabinet Only (in) | 50 |
